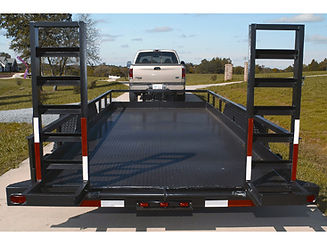

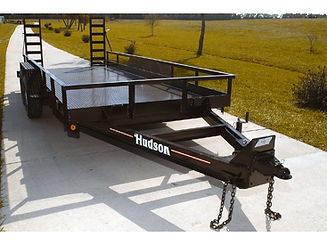

PRO SERIES - HA16 5 TON

STANDARD SPECIFICATIONS



GVWR:  12,400 lbs.



Empty Weight: 2,400 lbs.



Maximum Payload:  10,000 lbs. w/adequate hitch load



Overall Length: 22'



Deck Length: 16'

Ramps: 4’ cleated fully adjustable



Overall Width: 96"



Deck Width: 76"



Deck Height: 18"



Loading Ramp: 4' Cleated Fully Adjustable



Hitch: Adj. 2 5/16" Ball Coupler



Hitch Height: 15" to 19"



Cargo Rail:  2" x 2" x 1/4" Angle - 16" High



Axles:  (2) 5,200 lb. E-Z Lube Dexter w/Brakes

Suspension: Multi-Leaf Spring



Brakes:  Electric 12" x 2" w/ break-a-way



Wheels: 15" x 6" White Spoke 6-Bolt



Tires:  ST225/75R15" 8-PR



Jack Capacity:  2,000 lb. Flip-Up



Main Frame:  6" x 4" x 3/8" Angle @ 12.3#



Crossmembers:  3" Channel @ 3.5#



Decking:  1/8" Diamond Plate Metal



Tie Downs: 4 Stake Pockets



Lights: DOT LED Sealed Rubber-Mounted w/conduit



Colors: Yellow or Black



OPTIONS



TBB - Toolbox Bottom in Tongue

LTBL - Lockable Toolbox Lid

6WADL - Additional Deck Length


(2' Maximum)

6W102 - 102" Wide w/ 82" between fenders

JU2KTO7K - 7,000 lb Jack

HSB Hydraulic Surge Brakes

2 1/2" IH - 2 1/2" Adjustable Eye Hitch

MW - Modular Wiring

STM - Spare Tire Mount

STR - Spare Tire & Rim



CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
