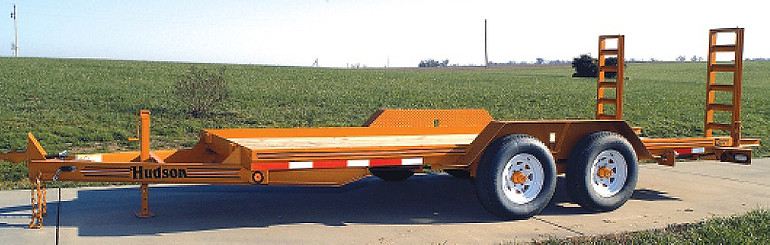

PRO SERIES - HBC10 16' Standard 6 TON

STANDARD SPECIFICATIONS



GVWR:  15,310 lbs.



Empty Weight: 3,310 lbs.



Maximum Payload:  12,000 lbs. w/adequate hitch load



Overall Length: 22'



Deck Length: 16'



Overall Width: 102"



Deck Width: 83"



Deck Height: 21"



Loading Ramp: 5' Cleated Fully Adjustable



Hitch: Adj. 2 5/16" Ball Coupler



Hitch Height: 16" to 24"



Fenders:  Diamond Plate



Axles:  (2) 6,000 lb. E-Z Lube Dexter w/Brakes



Suspension: Multi-Leaf Spring



Brakes:  Electric 12" x 2" w/ break-a-way



Wheels: 16" x 6" Single 8-bolt



Tires:  ST235/85R16" 10 PR



Jack Capacity:  7,000 lb. w/ Drop Foot



Main Frame:  6" x 4" x 3/8" Angle @ 12.3#



Crossmembers:  3" Channel @ 3.5#



Decking:  2" x 8" Treated Pine



Tie Downs: Rub Rail w/ Stake Pockets



Lights: DOT LED Sealed Rubber-Mounted w/conduit



Colors: Yellow or Black



OPTIONS



TBB - Toolbox Bottom in Tongue

​

LTBL - Lockable Toolbox Lid

​

6WGN - Gooseneck w/Adjustable 2 5/16" Ball Hitch

2 1/2" IH - 2 1/2" Adjustable Eye Hitch

6W102 - 102" Wide w/82" Deck Width

6WOD - 2"x8" White Oak Deck

6WADL - Additional Deck Length (2' Maximum)

WIR - Wood Insert Ramps

ED6x4F - 2' Extra Deck Length w/ 6x4 angle frame

​

6WSATG - 6' Wide Spring Assisted Tailgate



6WSSATG - 6' Wide Split Spring Assisted Tailgate

3R - 3rd Ramp

MW - Modular Wiring

​

TC - Trickle Charger for Break-A-Way



HSB Hydraulic Surge Brakes

JU2Kto7K - 7,000 lb Jack

STM - Spare Tire Mount

STR - Spare Tire & Rim



CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
