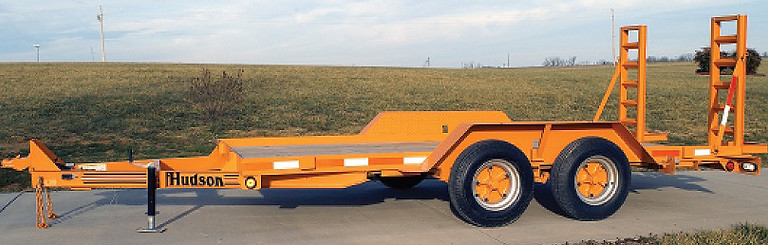

PRO SERIES - HBC10 3 1/2 TON

STANDARD SPECIFICATIONS



GVWR:  9,230 lbs.



Empty Weight: 2,230 lbs.



Maximum Payload:  7,000 lbs. w/adequate hitch load



Overall Length: 20'



Deck Length: 14'



Overall Width: 96"



Deck Width: 77"



Deck Height: 20"



Loading Ramp: 4' Cleated Fully Adjustable



Hitch: Adj. 2 5/16" Ball Coupler



Hitch Height: 15" to 23"



Fenders:  Diamond Plate



Axles:  (2) 3,500 lb. E-Z Lube Dexter w/Brakes



Suspension: Multi-Leaf Spring



Brakes:  Electric 10" x 2 1/4" w/ break-a-way



Wheels: 14" x 5" White Spoke 5-bolt



Tires:  ST215/75R14" 6-PR



Jack Capacity:  2,000 lb. Flip-up



Main Frame:  3" x 5" x 5/16" Angle @ 8.2#



Crossmembers:  3" Channel @ 3.5#



Decking:  2" x 8" Treated Pine



Tie Downs: Rub Rail w/ Stake Pockets



Lights: DOT LED Sealed Rubber-Mounted w/conduit



Colors: Yellow or Black



OPTIONS



TBB - Toolbox Bottom in Tongue

LTBL - Lockable Toolbox Lid

6WGN - Gooseneck w/Adjustable


2 5/16" Ball Hitch

2 1/2" IH - 2 1/2" Adjustable Eye Hitch

6WOD - 2" x 8" White Oak Deck

6W102 - 102" Wide w/82" Deck Width

6WADL - Additional Deck Length (2' Maximum)

WIR - Wood Insert Ramps

6WSATG - 6' Wide Spring Assisted Tailgate

6WSSATG - 6' Wide Split Spring Assisted Tailgate

3R - 3rd Ramp

JU7Kto7K - 7,000 lb Jack

MW - Modular Wiring

TC - Trickle Charger for Break-A-Way

HSB - Hydraulic Surge Brakes

STM - Spare Tire Mount

STR - Spare Tire & Rim

CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
