PRO SERIES - HLA25 - 25 TON AIRBRAKE TRAILER

STANDARD SPECIFICATIONS



GVWR:  61,690 lbs.

Empty Weight: 11,690 lbs.



Maximum Payload:  50,000 lbs. w/adequate hitch load



Overall Length: 34'



Deck Length: 28' (22' Flat w/ 6' Beavertail)



Overall Width: 102"



Deck Width: 102"

Deck Height: 34"

Beavertail: 6' w/ Wood

Ramps: 6' Spring Assist w/ Wood



Hitch: Adj. 3" Forged Eye



Hitch Height: 20" to 31"

Tongue:  Cold Form w/ Lockable Toolbox

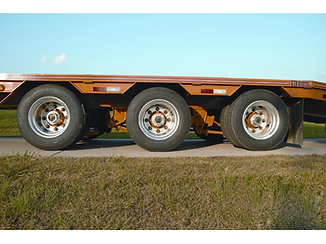

Axles:  (3) 20K Dexter Airbrake Oil Bath Axles

Suspension: Hutch 9700 (Back 2 Axles)
Cush Air Ride - Air Lift (Front Axle)



Brakes:  Air w/ ABS & ASA 12 1/4" x 7 1/2"



Wheels: 6.75" x 17.5" 8 Bolt Disc



Tires:  215/75R17.5 16-PR



Jack Capacity:  25,000 lbs. 2-Speed



Main Frame:  12" I-Beam @ 30##



Crossmembers:  6" Channel @ 8.2#

Side Rails:  8" Channel @ 11.5##



Decking:  2" x 8" White Oak



Tie Downs: Rub Rail w/Stake Pockets



Lights: Seal Beam Modular



Colors: Yellow or Black

OPTIONS



8WADL - Additional Deck Length Per 1' (4' Maximum)

DTSLG - Dual 2 Speed Landing Gear

CBR - Cleated Beavertail and Ramps

SUR - Standup Ramps

FR - Feathered Ramp

3R - 3rd Ramp

HYR - Hydraulic Operated Ramps

5THW - 5th Wheel w/ King Pin

8W5THW - 8' Wide 5th Wheel w/ King Pin

STM - Spare Tire Mount

STR - Spare Tire & Rim

CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
