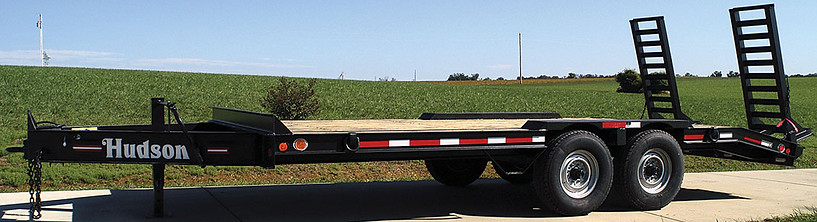

PRO SERIES - HS14 - 7 TON LOWBOY DECKOVER
STANDARD SPECIFICATIONS
GVWR: 18,140 lbs.
​
Empty Weight: 4,140 lbs.
Maximum Payload: 14,000 lbs. w/adequate hitch load
Overall Length: 22'
Deck Length: 16' (14' Flat w/ 2' Beavertail)
​
Overall Width: 96"
Deck Width: 96"
​
Deck Height: 28"
​
Beavertail: 2' w/ wood
​
Ramps: 5' Cleated w/Spring Assist
Hitch: Adj. 2 1/2"" Forged Eye
Hitch Height: 21" to 31"
​
Tongue: Cold Form w/ Tool Tray
​
Axles: (2) 7K Dexter E-Z Lube Dexter w/ Brakes
​
Suspension: Multi-Leaf Spring
Brakes: Electric 12" X 2" w/ Break-a-way
Wheels: 16" x 6" Single 8-Bolt
Tires: ST235/85R16" 10-PR
Jack Capacity: 12,000 lb. w/ Drop Foot
Main Frame: 10" Channel @ 15.3#
Crossmembers: 4" Channel @ 5.4#
​
Side rails: 6" Channel @ 8.2#
Decking: 2" x 8" White Oak
Tie Downs: 4 - 1" D-Rings
Lights: DOT LED Sealed Rubber-Mounted w/ Conduit
Colors: Yellow or Black
OPTIONS
LTBL - Lockable Toolbox Lid
​
ADR - Additional D-Rings
​
8WARL - Additional Ramp Length (1' Maximum)
​
FR - Feathered Ramp
​
WIR - Wood Insert Ramps
​
FAR - Full Adjustable Ramps
​
8WADL - Additional Deck Length Per 1' (4' Maximum)
​
8W102 - 102" Wide
​
8WGN - Gooseneck w/Adjustable 2 5/16" Ball Hitch
​
3"IH - 3" Eye Hitch
​
2 5/16" HDBH - 2 5/16" HD Ball Hitch (20K Forged)
​
2 5/16" HDBH - 2 5/16" HD Ball Hitch (20K Jaw Type)
​
STSLG - Single 2 Speed Landing Gear
​
MW - Modular Wiring
​
TC - Trickle Charger for Break-a-way
​
STM - Spare Tire Mount
​
STR - Spare Tire & Rim
​
CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
​
Note: Drive over style fenders allows this deckover model to have a extra low deck height of 28"
