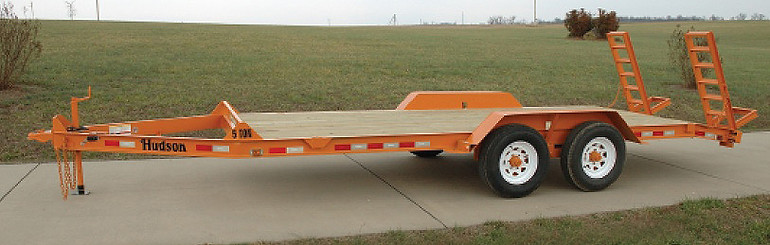

PRO SERIES - HSE DELUXE 5 TON

(Shown With Optional Beavertail)

STANDARD SPECIFICATIONS



GVWR:  12,000 lbs



Empty Weight: 2,000 lbs.



Maximum Payload:  10,000 lbs. w/adequate hitch load



Overall Length: 24'

​

Deck Length: 18'



Overall Width: 96"



Deck Width: 78"



Deck Height: 23"



Loading Ramp: 4' Cleated Fully Adjustable



Hitch: Adj. 2 5/16" Ball Coupler



Hitch Height: 22" to 26"



Fenders:  Diamond Plate

​

Axles:  (2) 5,200 lb. E-Z Lube Dexter w/Brakes



Suspension: Multi-Leaf Spring



Brakes:  Electric 12" x 2" w/ break-a-way



Wheels: 15" x 6" White Spoke 6-bolt



Tires:  ST 225/75 R15 8-PR



Jack Capacity:  5,000 lb. w/Foot



Main Frame:  7" Channel @ 9.8#



Crossmembers:  3" Channel @3.5#



Decking:  2" x 8" Treated Pine



Tie Downs: 4" Stake Pockets



Lights: DOT approved LED



Colors: Yellow or Black

​

Note:  On this model, the deck is flush with the top of the frame which makes it ideal for loading pallets or other material from the side.

OPTIONS



HSE Deluxe 14' - HSE Deluxe 5 Ton Capacity 14' (6" Frame)

​

HSE Deluxe 16' - HSE Deluxe 5 Ton Capacity 16' (6" Frame)

​

LTBL - Lockable Toolbox Lid

TBB - Toolbox Bottom in Tongue

​

6WOD - 2" x 8" White Oak Deck

​

ASP - Additional Stake Pockets

​

6WSATG - 6' Wide Spring Assisted Tailgate

​

6WSSATG - 6' Wide Split Spring Assisted Tailgate

​

3R - 3rd Ramp

​

CR - 10" Cargo Rail

​

JU5KTO7K - 7000 lb Jack

​

6WARL - Additional Ramp Length (1' Maximum)

​

WIR - Wood Insert Ramps

​

NF - No Fenders

​

6W102 - 102" Wide w/82" Deck Width

2BT - 2' Beavertail

6WGN - Gooseneck w/Adjustable 2 5/16" Ball Hitch

NAH - Nonadjustable 2 5/16" Ball Hitch

2 1/2'IH - 2 1/2" Adjustable Eye Hitch

HSB - Hydraulic Surge Brakes

TC - Trickle Charger for Break-A-Way



STM - Spare Tire Mount

STR - Spare Tire & Rim

CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
