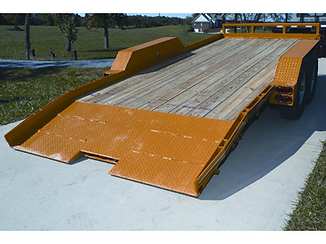

PRO SERIES - HSLT18 - 7 TON CAPACITY

STANDARD SPECIFICATIONS

GVWR:  17,310 lbs.

​

Empty Weight: 3,270 lbs.

Maximum Payload:  14,000 lbs. w/ adequate hitch load

Overall Length: 24'

Deck Length: 18' (14' Flat w/ 4' taper)

Overall Width: 102"

Deck Width: 82"

Deck Height: 22"

​

Approach Plate: Full Width

Hitch: Adj. 2 1/2" Eye

Hitch Height: 16" to 20"

​

Axles:  (2) 7K Oil Bath Dexter w/ Brakes

Suspension: Multi-Leaf Spring

Brakes:  Electric / 12" x 2" w/break-a-way

Wheels: 16" x 6"  Single Bolt

Tires:  ST235/85R16" 12-PR

Jack Capacity:  7,000 lb. w/ Adjustable Foot

Main Frame:  6" x 4" x  3/8" Angle @ 12.3#

Crossmembers:  3" Channel @ 3.5#

Decking:  2" X 8" Treated Pine

Tie Downs: Rub Rail w/Stake Pockets

Lights: DOT LED Sealed Rubber-mounted w/ Conduit

Colors: Yellow or Black

OPTIONS

LTBL - Lockable Toolbox Lid

​

6WGN - Gooseneck w/Adjustable 2 5/16" Ball Hitch

3"IH - 3" Eye Hitch

​

2 5/16" HDBH - 2 5/16" HD Ball Hitch (20K Forged)

​

2 5/16" HDBH - 2 5/16" HD Ball Hitch (20K Jaw Type)

​

6WOD - 2" x 8" White Oak Deck

​

JU7KTO12K - 12,000 lb. Heavy Duty Landing Gear

​

6WSD-2' - 6' Wide Stationary Deck (2')

​

6WADL - Extra Deck Length (2' Maximum)

​

6WSD-4' -6' Wide Stationary Deck (2')

​

TC - Trickle Charger for Break-A-Way

​

MW - Modular Wiring

​

STM - Spare Tire Mount

​

STR - Spare Tire & Rim

​

CO - Colors: Red, Blue, Green, Kubota, & Ditch Witch Orange
