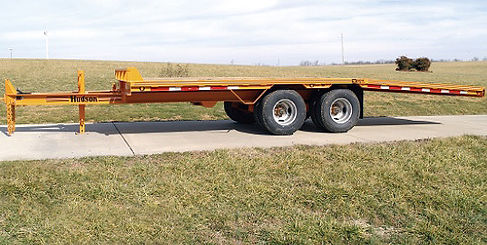

PRO SERIES - HTD20E - 9 TON TILT TRAILER

STANDARD SPECIFICATIONS



GVWR:  23,950 lbs.

Empty Weight: 5,950 lbs.



Maximum Payload:  18,000 lbs. w/ adequate hitch load



Overall Length: 28'



Deck Length: 22' (13' Flat w/ 9' taper)



Overall Width: 96"



Deck Width: 96"

Deck Height: 35"



Hitch: Adj. 2 1/2" Forged Eye



Hitch Height: 22" to 32"

Axles:  (2) 9K Oil Bath Dexter w/ Brakes



Suspension: Multi-Leaf Spring



Brakes:  Electric / Self Adj. 12 1/4" x 3 3/8"



Wheels: 16" x 6"  Dual 8- Bolt



Tires:  ST235/85R16" 10-PR



Jack Capacity:  12,000 lb. w/ Drop Foot



Under Frame:   6" I-Beam @ 25#

Upper Deck:   8" I-Beam @ 18#



Crossmembers:  Double 3" Channel @ 7#

Side Rails:  6" Channel @ 8.2#



Decking:  2" X 8" White Oak



Tie Downs: Rub Rail w/Stake Pockets



Lights: DOT LED Sealed Rubber-mounted w/ Conduit



Colors: Yellow or Black

OPTIONS



LTBL - Lockable Toolbox Lid

8WGN - Gooseneck w/Adjustable 2 5/16" Ball Hitch

3" IH - 3" Eye Hitch

8WOD - 2" x 8" White Oak Deck

SUR - Standup Ramps

8WARL - Additional Ramp Length (1' Maximum)

FR - Feathered Ramp

WIR&B - Wood Insert Ramps & Beavertail

PSP - Paver Special (See "Miscellaneous" below for description)

FAR - Fully Adjustable Ramps

8WADL - Additional Deck Length (4' Maximum)

8W102 - 102" Wide

3R - 3rd Ramp

WIR&B - Wood Insert Ramps & Beavertail

TC - Trickle Charger for Break-a-way

MW - Modular Wiring

STSLG - Single 2 Speed Landing Gear

DTSLG - Dual 2 Speed Landing Gear

DSSLG - Dual Single Speed Landing Gear

STM - Spare Tire Mount

STR - Spare Tire & Rim

CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
