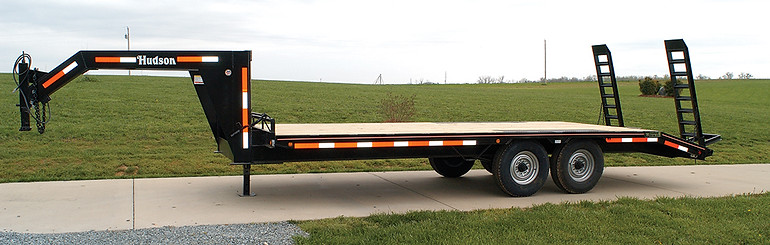

PRO SERIES - HTMGG - 7 Ton Gooseneck Trailer

STANDARD SPECIFICATIONS



GVWR:  18,670 lbs.



Empty Weight: 4,670 lbs.



Maximum Payload:  14,000 lbs. w/adequate hitch load



Overall Length: 33'



Deck Length: 23' (20' Flat w/ 3' Beavertail)



Overall Width: 96"



Deck Width: 96"



Deck Height: 31"



Beavertail: 3' w/ wood



Ramps: 5' Cleated w/ Spring Assist



Hitch: Adj. 2 5/16" Ball Coupler



Hitch Height: 42" Adjustable



Tongue:  Gooseneck w/ Tool Tray



Axles:  (2) 7K Oil Bath Dexter w/Brakes

​

Suspension: Multi-Leaf Spring



Brakes:  Electric 12" x 2" w/ break-a-way



Wheels: 16" x 6" Single 8-Bolt



Tires:  ST235/85R16" 12-PR



Jack Capacity:  12,000 lb. w/ Drop Foot



Main Frame:  8" Channel @ 11.5#



Crossmembers:  4" Channel @ 4.5#



Side Rail: 6" Channel @ 8.2#



Decking:  2" x 8" Treated Pine



Tie Downs: Rub Rail w/ Stake Pockets



Lights: DOT LED Sealed Rubber-Mounted w/conduit



Colors: Yellow or Black



Note:  On this model, the deck is flush with the top of the frame which makes it ideal for loading pallets or other material from the side.



OPTIONS



LTBL - Lockable Toolbox Lid

​

8WOD - 2" x 8" White Oak Deck

​

KP - Adjustable Kingpin

​

8WARL - Additional Ramp Length (1' Maximum)

​

WIR - Wood Insert Ramps

​

8WADL - Additional Deck Length (4' Maximum)

​

8W102 - 102" Wide

​

8WSATG - 8' Wide Spring Assisted Tailgate

​

8WSSATG - 8' Wide Split Spring Assisted Tailgate

​

3R - 3rd Ramp

​

DON - 5' X 8' Deck On Top Of Gooseneck

​

PBT - Pop Up Beavertail

​

MW - Modular Wiring

​

TC - Trickle Charger for Break-A-Way

​

STM - Spare Tire Mount

​

STR - Spare Tire & Rim

​

CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange​
