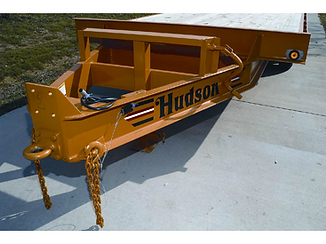

PRO SERIES - HTD18A - 20 TON DECKOVER TRAILER
STANDARD SPECIFICATIONS
GVWR: 48,640 lbs.
Empty Weight: 8,640 lbs.
Maximum Payload: 40,000 lbs. w/adequate hitch load
Overall Length: 31'
Deck Length: 25' (20' Flat w/ 5' Beavertail)
Overall Width: 96"
Deck Width: 96"
Deck Height: 34"
Beavertail: 5' w/ wood
Ramps: 5' Layover, Spring Assist w/ Wood
Hitch: Adj. 3" Forged Eye
Hitch Height: 20" to 31"
Tongue: Cold Form w/ Lockable Tool Box
Axles: (2) 20K E-Z Lube Dexter w/Brakes
Suspension: Hutch 9700
Brakes: Air w/ ABS & ASA 12 1/4" x 7 1/2"
Wheels: 6.75" x 17.5" 8 Bolt Disc
Tires: 215/75R17.5 16-PR
Jack Capacity: 12,000 lb. w/ Drop Foot
Main Frame: 12" I-Beam @ 30#
Crossmembers: 6" Channel @ 8.2#
Side rails: 8" Channel @ 11.5#
Decking: 2" x 8" White Oak
Tie Downs: Rub Rail w/Stake Pockets
Lights: DOT LED Sealed Rubber-Mounted w/ Conduit
Colors: Yellow or Black
OPTIONS
8W102 - 102" Wide
CBR - Cleated Beavertail and Ramps
SUR - Standup Ramps
8WARL - Additional Ramp Length (1' Maximum)
FR - Feathered Ramp
STSLG - Single 2 Speed Landing Gear
DTSLG - Dual 2 Speed Landing Gear
DSSLG - Dual Single Speed Landing Gear
3-20K - 3rd 20K Axle (makes it a 25 ton capacity)
3R - 3rd Ramp
8WADL - Additional Deck Length Per 1' (4' Maximum)
HYR - Hydraulic Operated Ramps
5THW - 5th Wheel w/ King Pin
8W5THW - 8' Wide 5th Wheel w/ King Pin
STM - Spare Tire Mount
STR - Spare Tire & Rim
CO - Color Options: Red, Blue, Green, Kubota & Ditch Witch Orange
Paver Special includes: 6' Beavertail w/wood - 6' Fully adjustable standup ramps w/ wood
and feathered ends.
